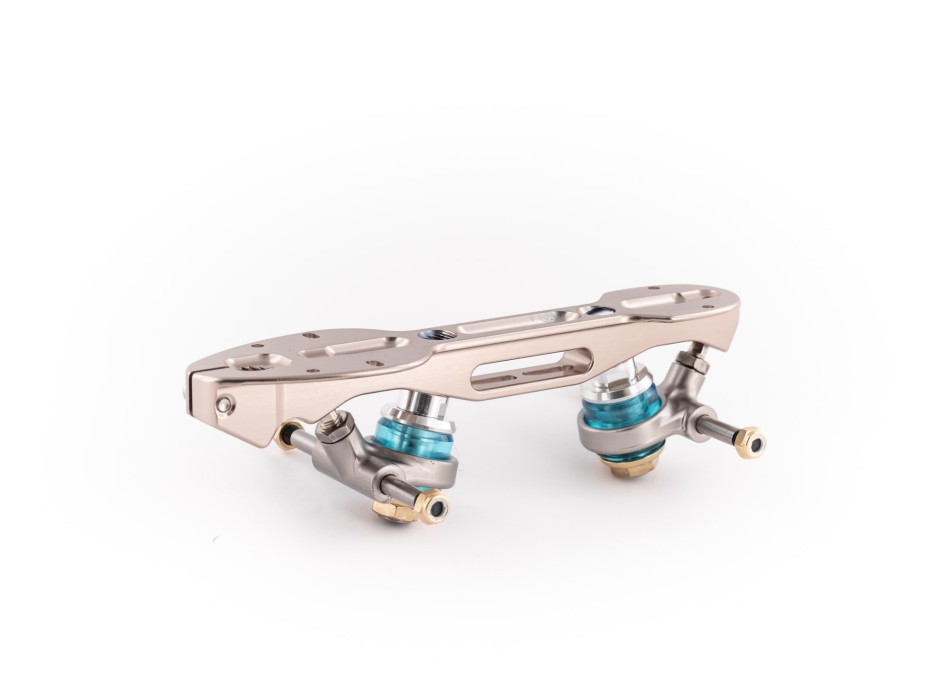

The Matrix frame (plate) is designed for athletes performing their first triple jumps and advanced level spins.
Each frame size comes with a specific suspension hardness.
If the athlete's needs are different, a replacement suspension kit can be purchased separately.
Consult the guide to choose the most suitable suspension.
| THEIR SUSPENSIONS | GREEN | GREY | SKY BLUE |
| REFERENCE WEIGHT | Up to 45kg | From 45 to 55 kg | From 55 to 65 kg |
The Roll-Line® professional plates are characterized by an inward inclination of the brakes of 4°.
This particular setting offers a series of advantages such as:
The high-level Roll-Line® freestyle plates have a 5mm lowered structure.
The downward center of gravity is advantageous during:
Turn the steering adjustment nut with the socket wrench clockwise to make the steering stiffer, or counterclockwise to make it softer.
Taking the 0 indicated on the plate as a starting point, it is possible to operate the nut marked with numbers from 1 to 8 to find the most optimal personal adjustment.
Be careful to respect the suggested limits of use to avoid malfunctions and damage.
It is important to make sure that the tip is inserted with light pressure into the spherical seat. Loosen the tip lock nut with a 13 mm wrench.
Unscrew or screw the tip with a 6 mm wrench.
Check that it is inserted into the spherical seat with light pressure. Close the tip locking nut.
It is advisable to check the status of the various components every time you use the product.
In particular, it is important to carefully ascertain:
ADVISE
It is preferable not to act noticeably on the steering close to the races (less than 1 week).
Changing the adjustment involves a change in the behavior of the tool which requires a suitable adaptation time.
Characteristics
|
|
